Small Electric Winch/Mini Hoist With 220V
General Introduction of electric chain hoist
Electric chain hoist is a light duty crane lifting equipment. The lifting capacity of electric chain hoist can be from 0.5 ton to 50 ton. There are total three types of electric chain hoists for you. Manual trolley electric chain hoist, fixed type electric chain hoist, electric trolley electric chain hoist. Please choose as your working environment and specific requirements.
Product Application
2 ton 5 ton 10 ton 16 ton 32 ton monorail electric hoist trolley crane
Our factory can produce 1-50 tons of wire rope electric hoist, including CD and MD type,low headroom hoist,HC type large weight and high working level,HB/BHC explosion proof type , European electric hoist and Chain hoist

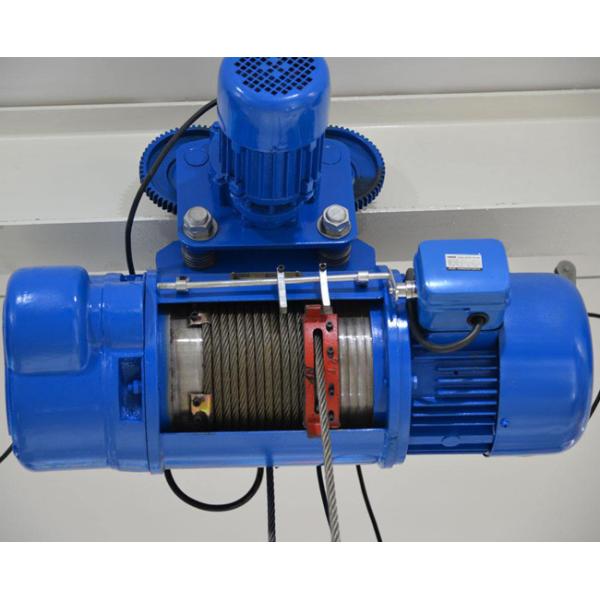

The CD and MD type wire rope electric hoist is a kind of light and small lifting equipment, which can be installed on single beam crane, bridge crane, gantry crane, arm cranes ,cantilever cranes, etc. It can also be used as a winch.It is widely used in factories,mines,harbors,warehouses,cargo storage areas and shops.CD has one speed,MD has two speed.
Advantage of 2 ton 5 ton 10 ton electric hoist trolley crane
1) famous brand motor ,long life time
2) durable gear .
3) fast delivery ,
4) good aftersale service .
Electric chain hoist description (as customized)
| lift capacity(T) | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| Testing loading(T) | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn | 1.25Gn |
| Motor power(kw) | 1.5 | 3.0 | 3.0 | 3.0 | 3.0 | 3.0*2 | 3.0*2 |
| Lift speed(m/min) | 6.6 | 8.8 | 6.6 | 5.4 | 2.7 | 2.7 | 1.4 |
| Lift chain quantity | 1 | 1 | 1 | 1 | 2 | 4 | 8 |
| Chain diameter(mm) | 7.1 | 10.0 | 10.0 | 11.2 | 11.2 | 11.2 | 11.2 |
| Net weight(kg) | 61 | 108 | 115 | 122 | 151 | 300 | 480 |
| lift 1 more meter increase weight(kg) | 1.1 | 2.3 | 2.3 | 2.8 | 5.6 | 8.4 | 22 |
| Min. Distance between hooks H(mm) | 650 | 800 | 800 | 845 | 1030 | 1400 | 1470 |
